PE Formats
Lets understand two important concepts related to a PE:
- File pointer - location of an item within a file itself, before being processed by the linker ( in the case of object files ) or the loader ( in the case of image files). In other words, this is a position within a file as stored on disk.
- RVA ( relative virtual address ) - In an image file, this is the address of an item after it is loaded into memory, with the base address of the image file subtracted from it. The RVA of an item almost always differs from its position within the file on disk ( file pointer ). Here we are dealing with addresses in memory.
So in summary, RVA is an offset from the base address to the location we are interested in, and the file pointer is an offset in a file on disk.
So far we have understood there are two main parts to any PE file, which are header and sections.
- The header contains technical details about the PE or the executable.
- The sections are similar to chapters of a book. They contain the content of the executable.
Next, lets take a deeper look at the header part of a PE, as this may seem overwhelming at first. To easily understand, let us take the analogy of driving a car down the road. So to reach from point A to point B we check the signs on the road and simply follow the signs to get there.
So, header part would have signs ( pointers ) to the following locations:
- DOS Header
- PE Header
- Optional header
- Data Directories
- sections table
So PE header are like road signs, so when you are in DOS header, and you want to find location of the PE header, then DOS header would have this information. Similarly, when you are at the PE header and want to get the information on the Optional header ( e.g size of the optional header) , the PE header would have that, and so on.
When you are at the optional header, you have a lot more information. You can ask for the type of executable - console, GUI, app, etc. Also entry point within the PE file.
The data directories contain information about the type of the PE, about its structure, and its imports and exports - which library does the PE need, etc.
The sections table is like table of content in a book, for example chapter one contains the code section, chapter two is text section, and so on.
Lets analyse the PE headers from notepad.exe using PE-Bear. To understand the various headers, we can use a header file called
winnt.h located at C:\Program Files (x86)\Windows Kits\10\lib\10.0.18362.0\um.

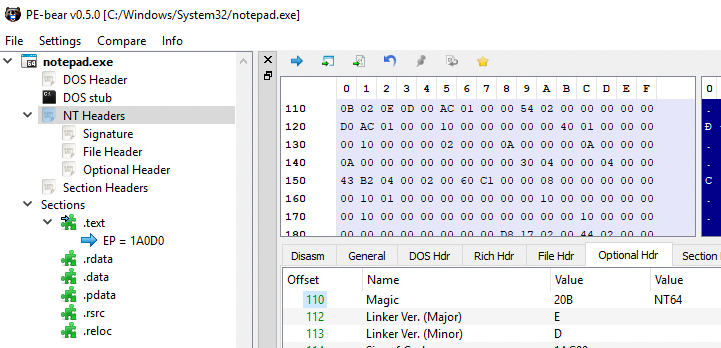

When we open the notepad.exe executable in PE-Bear, on the left the headers are listed:
We can walk through the headers to understand how they are organised internally, together with the help of winnt.h header file which includes the definitions of these headers. We start with DOS header where the column towards the right displays the memory layout.
The winnt.h header file contains the structure definition of the DOS Header:
typedef struct _IMAGE_DOS_HEADER { // DOS .EXE header
WORD e_magic; // Magic number
WORD e_cblp; // Bytes on last page of file
WORD e_cp; // Pages in file
WORD e_crlc; // Relocations
WORD e_cparhdr; // Size of header in paragraphs
WORD e_minalloc; // Minimum extra paragraphs needed
WORD e_maxalloc; // Maximum extra paragraphs needed
WORD e_ss; // Initial (relative) SS value
WORD e_sp; // Initial SP value
WORD e_csum; // Checksum
WORD e_ip; // Initial IP value
WORD e_cs; // Initial (relative) CS value
WORD e_lfarlc; // File address of relocation table
WORD e_ovno; // Overlay number
WORD e_res[4]; // Reserved words
WORD e_oemid; // OEM identifier (for e_oeminfo)
WORD e_oeminfo; // OEM information; e_oemid specific
WORD e_res2[10]; // Reserved words
LONG e_lfanew; // File address of new exe header
} IMAGE_DOS_HEADER, *PIMAGE_DOS_HEADER;
Clicking on DOR Hdr tab on the panel automatically lists the values from this memory sections. For example, the parameter e_magic is WORD which occuplies 2 bytes in the memory displayed as
4D 5A 90 00 03 00 00 00 04 00 00 00 FF FF 00 00
Therefore as displayed in the tab, the value is 5A4D. Similarly, the parameter e_cblp is also a word so the corresponding next two bytes:
4D 5A 90 00 03 00 00 00 04 00 00 00 FF FF 00 00
And so on..
The last parameter e_lfanew is interesting, especially because of the analogy of the road signs that was mentioned earlier. The parameter contains the file address of next header i.e NT Headers.
.

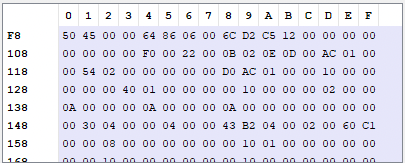

The value mentioned in F8. Lets click on the F8 value in DOS Header tab. The memory layout points now to the file address of NT Header.
Lets look at the header definition of NT Header:
typedef struct _IMAGE_NT_HEADERS64 {
DWORD Signature;
IMAGE_FILE_HEADER FileHeader;
IMAGE_OPTIONAL_HEADER64 OptionalHeader;
} IMAGE_NT_HEADERS64, *PIMAGE_NT_HEADERS64;
So, the above definition indicates that 1st 4 bytes is the Signature displayed as
50 45 00 00 64 86 06 00 6C D2 C5 12 00 00 00 00
The remaining bytes points to the structure of IMAGE_FILE_HEADER.
The structure definition is:
typedef struct _IMAGE_FILE_HEADER {
WORD Machine;
WORD NumberOfSections;
DWORD TimeDateStamp;
DWORD PointerToSymbolTable;
DWORD NumberOfSymbols;
WORD SizeOfOptionalHeader;
WORD Characteristics;
} IMAGE_FILE_HEADER, *PIMAGE_FILE_HEADER;
The most interesting part is the last parameter Characteristics which tells us characteristic of the binary. In this case the values are 2 and 20 which based on winnt.h header file, suggests that PE is executable has an address space that is larger than 2GB.
#define IMAGE_FILE_EXECUTABLE_IMAGE 0x0002 // File is executable (i.e. no unresolved external references).
[...]
#define IMAGE_FILE_LARGE_ADDRESS_AWARE 0x0020 // App can handle >2gb addresses

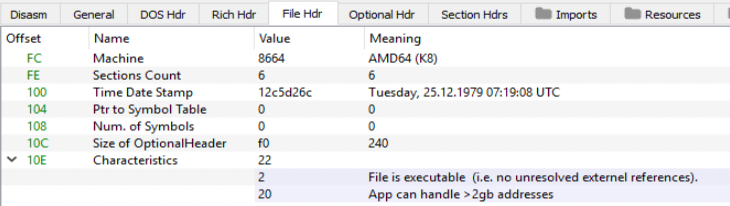

Again the File Hdr tab in PE Bear automically fetches this data for us:
Note that the offset 10C in PE memory ( also the SizeOfOptionalHeader parameter ) shows the size of the Optional Header as 240 bytes

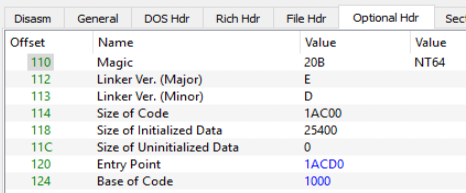

The next header within NT Header is theOptional Hdr. The Optional Hdr has lot more fields therefore we shall discuss the most important ones.

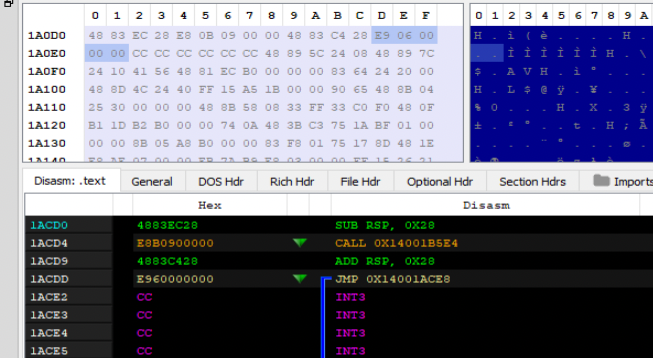

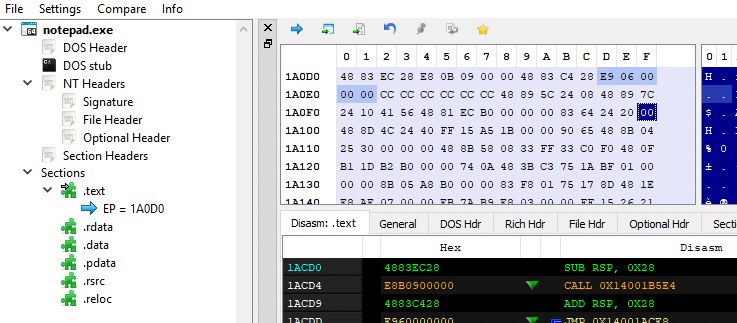

The Entry Point value 1ACD0 is an RVA ( points to an offset in memory ) to the .text section of the PE i.e the first instruction which is executed after the process is loaded. Clicking on this binary, the Diasm tab points to the .text section.
The Image Base with value 140000000 ( aka base address ) is the address of the virtual memory from where the PE would be loaded. The next is Subsystem has the value 2 which ( from on the definition from the header file ) indicates that the PE is a GUI, which is true as notepad.exe is a GUI application.
// Subsystem Values
#define IMAGE_SUBSYSTEM_WINDOWS_GUI 2 // Image runs in the Windows GUI subsystem.

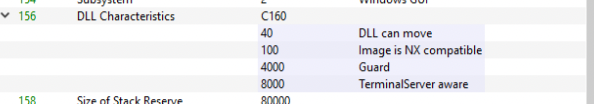

The next one is DLL Characteristics, although its called DLL, the same applies to EXE as well. BE Bear has already resolves this as shown.
Based on the definition from the header file we know the following:
| 40 | DLL Can Move | Dynamic base which means the base address can change while loading, and therefore can be changed. |
| 100 | Image is NX compatible | The stack in the process is non-executable, also called as DEP. |
| 4000 | Guard | This refers to control flow guard, this image supports CFG. |
| 8000 | TerminalServer Aware | Indicates the image is terminal service aware. |
We can also view this information once we load the PE in the memory. So, open notepad.exe and start Process Hacker. Open notepad.exe properties and go General tab under Mitigation Policies displays the details gathered from PE Bear.
Also, while we are in Process Hacker lets also checkout the base address of the application in memory
The base address 0x7ff767c00000 is different from the one mentioned in the PE Bear 140000000 which is expected former is from memory and the latter is on the disk.
The next field “Number of RVAs and Sizes” holds the information of how many members of data directory are in place and by default it is 16 or 0x10. The subsequent section holds the data directory, which contains data which points to more related data. For example, Export Directory holds the address which points all the DLL and functions it exports. Similarly, Import Directory holds the address which points to the location that lists all the imported functions and so on.
The corresponding definition in the header file is below:
typedef struct _IMAGE_DATA_DIRECTORY {
DWORD VirtualAddress;
DWORD Size;
} IMAGE_DATA_DIRECTORY, *PIMAGE_DATA_DIRECTORY;

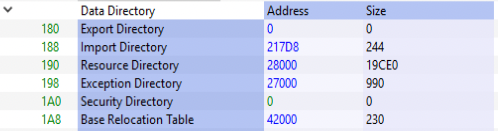

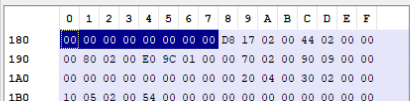

So at offset 180, two 4 bytes, each with value 0 which there are no export addresss table.
However, the next 4 bytes is the address of Import Directory which has the value 217D8. This process goes on. Another important point to mention is that the Data Directory ends with two empty records.

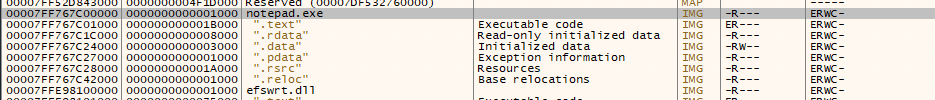

The last entry to discuss is the Import Address Table located at 1E0 offset holds the value 1C6B0. Lets take a look with xdbg tool and reach this memory location in process memory. Start notepad.exe and attaching debugger to it. Under memory map, the base address is noted:

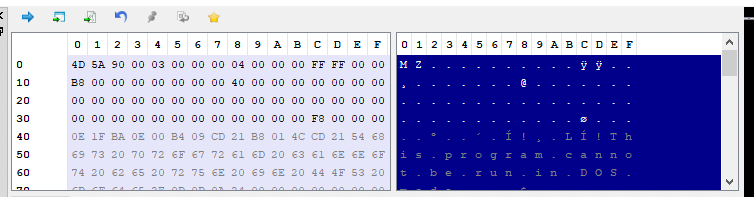

Double clicking on this based address (00007FF767C00000) in memory map will display the address location is Dump. You can see the start location display the values 4D 5A which is the signature of DOS Header.

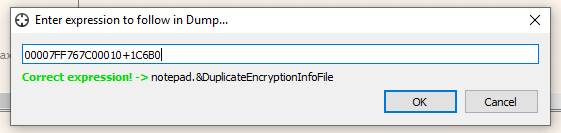

To find the offset of Import address table, we enter CTRL-G to follow the expression in dump.

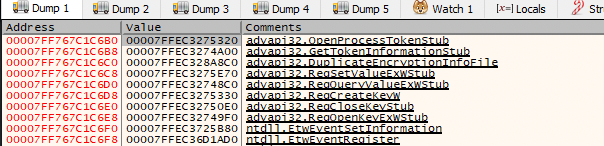

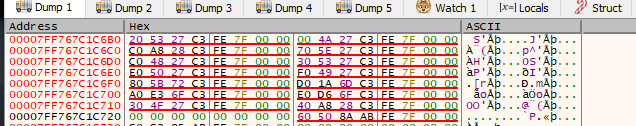

We should now reach the import address table:
You can also view the complete list, by right clicking in Dump workspace and selecting address, which would list all the functions in the memory.
We can also view the same with Process Hacker as well. Under Properties of notepad.exe click on Memory and the corresponding address location.

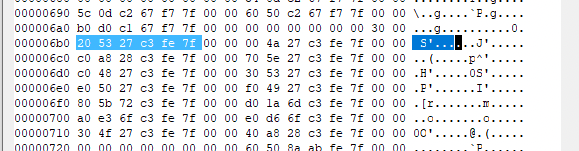

Double clicking on that base location (0x7ff767c1c000) and scroll down to the offset 6B0.
This is our Import Address Table.
The last main header is Section Header, the definition is:
typedef struct _IMAGE_SECTION_HEADER {
BYTE Name[IMAGE_SIZEOF_SHORT_NAME];
union {
DWORD PhysicalAddress;
DWORD VirtualSize;
} Misc;
DWORD VirtualAddress;
DWORD SizeOfRawData;
DWORD PointerToRawData;
DWORD PointerToRelocations;
DWORD PointerToLinenumbers;
WORD NumberOfRelocations;
WORD NumberOfLinenumbers;
DWORD Characteristics;
} IMAGE_SECTION_HEADER, *PIMAGE_SECTION_HEADER;

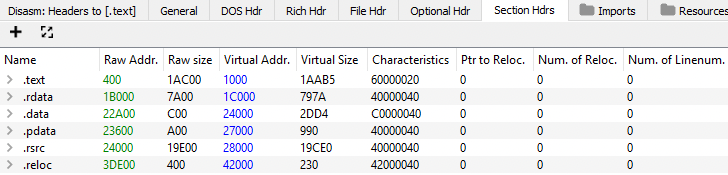

The PE Bear has revolved this to the following:

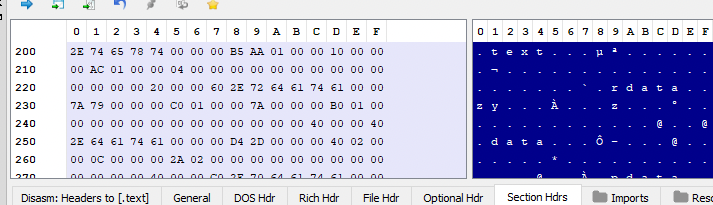

It start with name which is defines by IMAGE_SIZEOF_SHORT_NAME which is 8 bytes, for example, the first one is .text as shown in the address layout.
Next is a UNION ( which means this field can be reference this as VirtualAdress or as VirtualSize ), and it takes only a single location which is a DWORD and 4 bytes long. This has the value 1AAB5 as resolved by PE Bear. Next the Virtual Address is the RVA with value 1000. The Raw Size is 4 byte data has value 1AC00. The Raw Addr has the value 400 which is the offset in the file.
In other words, the .text section will be loaded from base address + 1000 ( RVA), and this will be mapped starting from byte number 400 in the file, for size of 1AC00.
Another important field is Characteristics with value 60000020 is a combination of several code. Upon referencing the header file:
#define IMAGE_SCN_MEM_EXECUTE 0x20000000 // Section is executable.
#define IMAGE_SCN_MEM_READ 0x40000000 // Section is readable.
#define IMAGE_SCN_CNT_CODE 0x00000020 // Section contains code.
The same also be verified by using dumpbin utility and checking the flags
dumpbin /headers C:\Windows\System32\notepad.exe

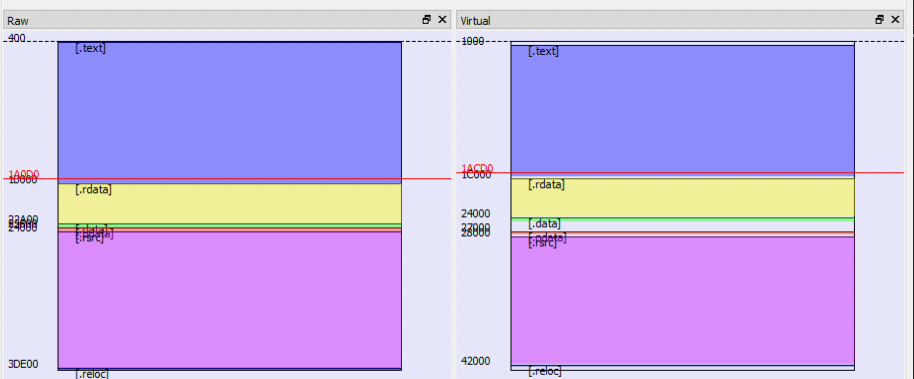

Finally PE Bear also has a nice visual representation on how the execuable look in RAW form and in Virtual Memory.
